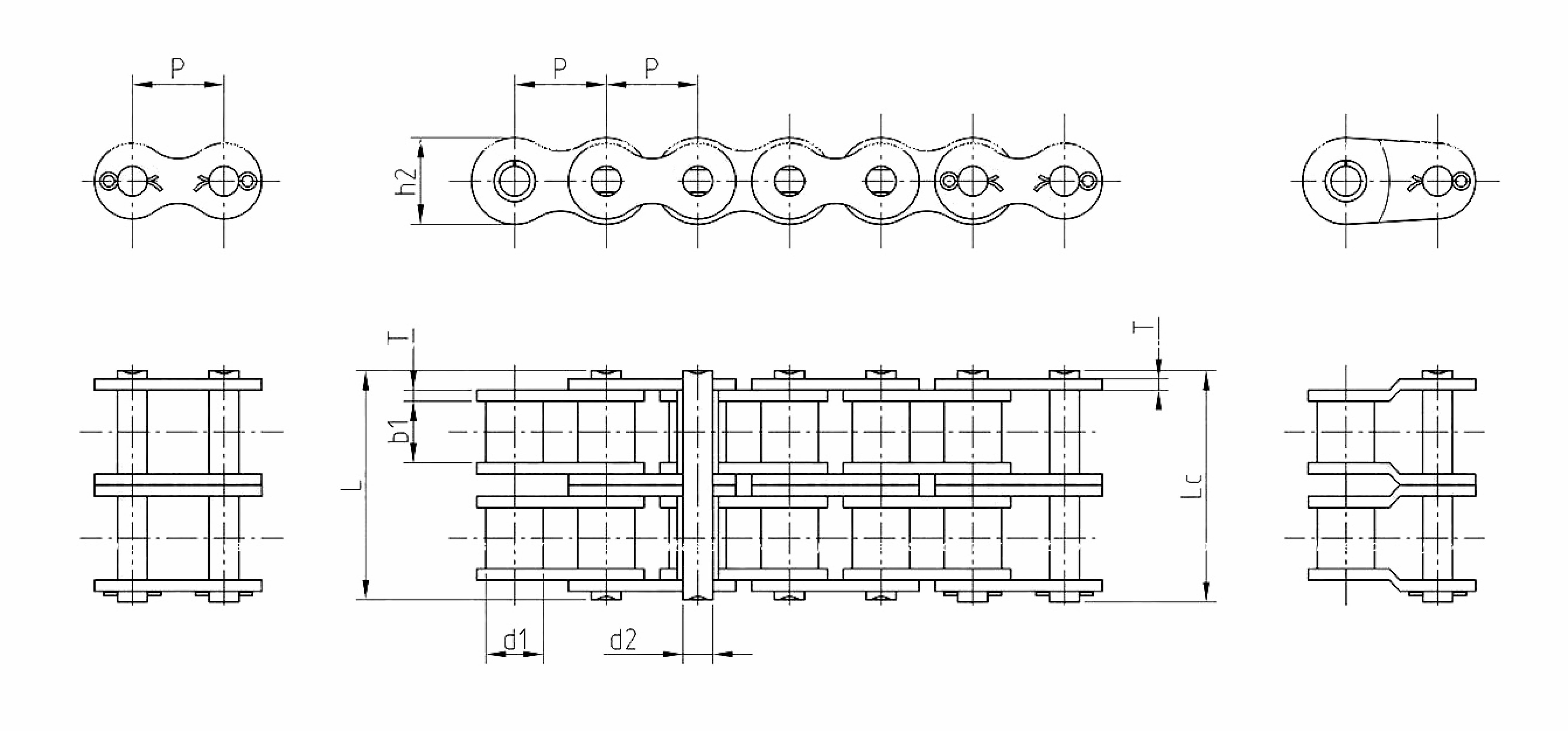

Размеры двухрядных роликовых цепей по ГОСТ и ISO, ANSI
| Наименование цепи | Шаг, мм | Ширина между внутренними пластинами, мм | Диаметр ролика, мм | Диаметр валика, мм | Длина валика, мм | Ширина внутренней пластины, мм | Толщина пластины, мм | Средняя разрушающая нагрузка, kH | Вес, кг/м | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ГОСТ | DIN / ISO | ANSI | P | b1 min | d1 max | d2 max | L max | Lc max | h2 max | T max | ||
| 04C-2 | *25-2 | 6.35 | 3.18 | 3.3 | 2.31 | 14.5 | 15 | 6 | 0.8 | 8.6 | 0.28 | |
| 2ПР-8-7.8 | 05B-2 | 8 | 3 | 5 | 2.31 | 13.9 | 14.5 | 7.1 | 0.8 | 10.2 | 0.33 | |
| 06C-2 | *35-2 | 9.525 | 4.77 | 5.08 | 3.58 | 22.5 | 23.3 | 9 | 1.3 | 19.7 | 0.63 | |
| 2ПР-9.525-17 | 06B-2 | 9.525 | 5.72 | 6.35 | 3.28 | 23.4 | 24.4 | 8.2 | 1.3 | 18.7 | 0.77 | |
| 085-2 | 41-2 | 12.7 | 6.25 | 7.77 | 3.58 | 25.7 | 26.9 | 9.91 | 1.3 | 16.9 | 0.81 | |
| 08A-2 | 40-2 | 12.7 | 7.85 | 7.95 | 3.96 | 31 | 32.2 | 12 | 1.5 | 35.9 | 1.12 | |
| 2ПР-12.7-31.8 | 08B-2 | 12.7 | 7.75 | 8.51 | 4.45 | 31 | 32.2 | 11.8 | 1.6 | 38.7 | 1.34 | |
| 10A-2 | 50-2 | 15.875 | 9.4 | 10.16 | 5.08 | 38.9 | 40.4 | 15.09 | 2.03 | 58.1 | 2 | |
| 2ПР-15.875-45.40 | 10B-2 | 15.875 | 9.65 | 10.16 | 5.08 | 36.1 | 37.5 | 14.7 | 1.7 | 56.2 | 1.84 | |
| 2ПР-19.05-64 | 12A-2 | 60-2 | 19.05 | 12.57 | 11.91 | 5.94 | 48.8 | 50.5 | 18 | 2.42 | 82.1 | 2.92 |
| 2ПР-19.05-72 | 19.05 | 12.57 | 11.91 | 5.94 | 52.8 | 54.4 | 18.2 | 82.9 | 3.3 | |||
| 2ПР-19.05-75 | 19.05 | 12.57 | 11.91 | 5.94 | 51.8 | 53.4 | 18.2 | 2.42 | 83.4 | 3 | ||
| 12B-2 | 19.05 | 11.68 | 12.07 | 5.72 | 42 | 43.6 | 16 | 1.85 | 66.1 | 2.31 | ||
| 2ПР-25.4-114 | 16A-2 | 80-2 | 25.4 | 15.75 | 15.88 | 7.92 | 62.7 | 64.3 | 24 | 3.25 | 141.8 | 5.15 |
| 2ПР-25.4-130 | 25.4 | 15.75 | 15.88 | 7.92 | 62.7 | 64.3 | 24 | 3.25 | 141.8 | 5.15 | ||
| 2ПР-25.4-140 | 25.4 | 15.75 | 15.88 | 7.92 | 62.7 | 64.3 | 24 | 3.25 | 141.8 | 5.15 | ||
| 16B-2 | 25.4 | 17.02 | 15.88 | 8.28 | 68 | 69.3 | 21 | 4 | 133 | 5.42 | ||
| 2ПР-31.75-177 | 20A-2 | 100-2 | 31.75 | 18.9 | 19.05 | 9.53 | 76.4 | 80.5 | 30 | 4 | 219.4 | 7.8 |
| 20B-2 | 31.75 | 19.56 | 19.05 | 10.19 | 77.8 | 81.5 | 26.4 | 4 | 211.2 | 7.2 | ||
| 2ПР-38.1-254 | 24A-2 | 120-2 | 38.1 | 25.22 | 22.23 | 11.1 | 95.8 | 99.7 | 35.7 | 4.8 | 314.9 | 11.7 |
| 24B-2 | 38.1 | 25.4 | 25.4 | 14.63 | 101.7 | 106.2 | 33.2 | 6 | 319.2 | 13.4 | ||
| 2ПР-44.45-344 | 28A-2 | 140-2 | 44.45 | 25.22 | 25.4 | 12.7 | 103.3 | 107.9 | 41 | 5.6 | 427.5 | 15.14 |
| 28B-2 | 44.45 | 30.99 | 27.94 | 15.9 | 124.6 | 129.1 | 36.7 | 7 | 406.8 | 16.6 | ||
| 2ПР-50.8-453.60 | 32A-2 | 160-2 | 50.8 | 31.55 | 28.58 | 14.27 | 123.3 | 128.1 | 47.8 | 6.4 | 562.4 | 20.14 |
| 32B-2 | 50.8 | 30.99 | 29.21 | 17.81 | 124.6 | 129.6 | 42 | 7 | 508.5 | 21 | ||
| 36A-2 | 180-2 | 57.15 | 35.48 | 35.71 | 17.46 | 138.6 | 144.4 | 53.6 | 7.2 | 695 | 29.22 | |
| 2ПР-63.5-708 | 40A-2 | 200-2 | 63.5 | 37.85 | 39.68 | 19.85 | 151.9 | 158.8 | 60 | 8 | 877.4 | 32.24 |
| 40B-2 | 63.5 | 38.1 | 39.37 | 22.89 | 154.5 | 161.5 | 52.96 | 8 | 711.9 | 32 | ||
