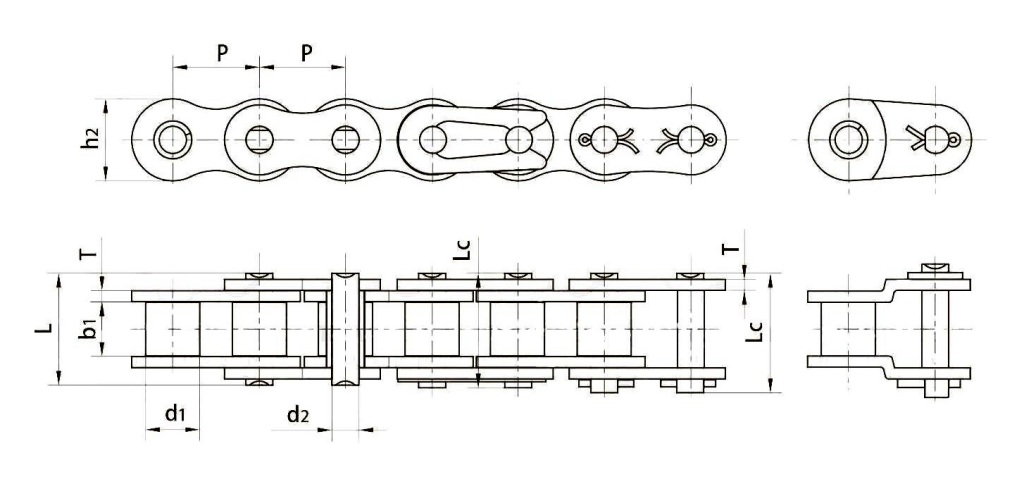

Размеры однорядных роликовых цепей по ГОСТ и ISO, ANSI
| Наименование цепи | Шаг, мм | Ширина между внутренними пластинами, мм | Диаметр ролика, мм | Диаметр валика, мм | Длина валика, мм | Ширина внутренней пластины, мм | Толщина пластины, мм | Средняя разрушающая нагрузка, kH | Вес, кг/м | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ГОСТ | DIN / ISO | ANSI | P | b1 min | d1 max | d2 max | L max | Lc max | h2 max | T max | ||
| 02B-1 | 4 | 2.7 | 2.5 | 1.65 | 6.7 | 7.9 | 4.1 | 0.57 | 2 | 0.07 | ||
| 03C-1 | 15 | 4.763 | 2.38 | 2.48 | 1.62 | 6.1 | 6.9 | 4.3 | 0.6 | 2 | 0.08 | |
| 03B-1 | 5 | 2.5 | 3.2 | 1.49 | 7.4 | 8.5 | 4.1 | 0.57 | 2.4 | 0.08 | ||
| ПР6-3,0 | 04B-1 | 6 | 2.8 | 4 | 1.85 | 6.8 | 7.8 | 5 | 0.6 | 3.2 | 0.11 | |
| 04C-1 | 25 | 6.35 | 3.18 | 3.3 | 2.31 | 7.9 | 8.4 | 6 | 0.8 | 4.6 | 0.15 | |
| ПР8-4,6 | 05B-1 | 8 | 3 | 5 | 2.31 | 8.2 | 8.9 | 7.16 | 0.8 | 5.9 | 0.20 | |
| ПР9,525-9,1 | 06B-1 | 9.525 | 5.72 | 6.35 | 3.28 | 13.15 | 14.1 | 8.2 | 1.3 | 10.4 | 0.41 | |
| 06C-1 | 35 | 9.525 | 4.77 | 5.08 | 3.58 | 12.4 | 13.17 | 9 | 1.3 | 10.8 | 0.33 | |
| ПР12,7-9 | 081-1 | 12.7 | 3.3 | 7.75 | 3.66 | 10.2 | 11.7 | 9.9 | 1 | 10.1 | 0.28 | |
| ПР12,7-10 | 082-1 | 12.7 | 2.38 | 7.75 | 3.66 | 9 | 10.5 | 10 | 11 | 0.27 | ||
| 083-1 | 12.7 | 4.88 | 7.75 | 4.09 | 12.9 | 14.4 | 10.3 | 12 | 0.42 | |||
| 084-1 | 12.7 | 4.88 | 7.75 | 4.09 | 14.8 | 16.3 | 11.5 | 1 | 17 | 0.59 | ||
| 085-1 | 41 | 12.7 | 6.25 | 7.77 | 3.58 | 13.75 | 15 | 9.91 | 1.3 | 12.6 | 0.41 | |
| ПР12,7-18,2-1 | 12.7 | 5.3 | 8.51 | 4.45 | 14.2 | 15.7 | 10.9 | 1.8 | 19.3 | 0.62 | ||
| 08A-1 | 40 | 12.7 | 7.85 | 7.95 | 3.96 | 16.6 | 17.8 | 12 | 1.5 | 17.5 | 0.62 | |
| ПР12,7-18,2 | 08B-1 | 12.7 | 7.75 | 8.51 | 4.45 | 16.7 | 18.2 | 11.8 | 1.6 | 19.4 | 0.69 | |
| 10A-1 | 50 | 15.875 | 9.4 | 10.16 | 5.08 | 20.7 | 22.2 | 15.09 | 2.03 | 29.14 | 1.02 | |
| ПР15,875-23-1 | 15.875 | 6.25 | 10.16 | 5.08 | 17.5 | 19 | 15.09 | 2.03 | 25.5 | 0.89 | ||
| ПР15,875-23 | 10B-1 | 15.875 | 9.65 | 10.16 | 5.08 | 19.5 | 20.9 | 14.7 | 1.7 | 27.5 | 0.93 | |
| ПР19,05-31,8 | 12A-1 | 60 | 19.05 | 12.57 | 11.91 | 5.94 | 25.9 | 27.7 | 18 | 2.42 | 41.5 | 1.50 |
| ПР19,05-37,8 | 19.05 | 12.57 | 11.91 | 5.94 | 25.9 | 27.7 | 18 | 2.42 | 41.5 | 1.50 | ||
| 12B-1 | 19.05 | 11.68 | 12.07 | 5.72 | 22.5 | 24.2 | 16 | 1.85 | 32.2 | 1.15 | ||
| 16A-1 | 80 | 25.4 | 15.75 | 15.88 | 7.92 | 32.7 | 35 | 24 | 3.25 | 69.4 | 2.60 | |
| ПР25,4-60 | 25.4 | 15.75 | 15.88 | 7.92 | 32.7 | 35 | 24 | 3.25 | 69.4 | 2.60 | ||
| ПР25,4-65 | 25.4 | 15.75 | 15.88 | 7.92 | 32.7 | 35 | 24 | 3.25 | 69.4 | 2.60 | ||
| 16B-1 | 25.4 | 17.02 | 15.88 | 8.28 | 36.1 | 37.4 | 21 | 4 | 72.8 | 2.71 | ||
| ПР31,75-89 | 20A-1 | 100 | 31.75 | 18.9 | 19.05 | 9.53 | 40.4 | 44.7 | 30 | 4 | 109.2 | 3.91 |
| 20B-1 | 31.75 | 19.56 | 19.05 | 10.19 | 41.3 | 45 | 26.4 | 4 | 106.7 | 3.70 | ||
| ПР35-5000 | 35 | 22 | 22 | 9 | 44 | 47 | 24 | 54 | 3.13 | |||
| ПР38,1-127 | 24A-1 | 120 | 38.1 | 25.22 | 22.23 | 11.1 | 50.3 | 54.3 | 35.7 | 4.8 | 156.3 | 5.62 |
| 24B-1 | 38.1 | 25.4 | 25.4 | 14.63 | 53.4 | 57.8 | 33.2 | 6 | 178 | 7.10 | ||
| ПР44,45-172,4 | 28A-1 | 140 | 44.45 | 25.22 | 25.4 | 12.7 | 54.4 | 59 | 41 | 5.6 | 212 | 7.50 |
| 28B-1 | 44.45 | 30.99 | 27.94 | 15.9 | 65.1 | 69.5 | 36.7 | 7 | 222 | 8.50 | ||
| ПР50,8-227 | 32A-1 | 160 | 50.8 | 31.55 | 28.58 | 14.27 | 64.8 | 69.6 | 47.8 | 6.4 | 278.9 | 10.10 |
| 32B-1 | 50.8 | 30.99 | 29.21 | 17.81 | 66 | 71 | 42 | 7 | 277.5 | 10.25 | ||
| 36A-1 | 180 | 57.15 | 35.48 | 35.71 | 17.46 | 72.8 | 78.6 | 53.6 | 7.2 | 341.8 | 13.45 | |
| ПР63,5-354 | 40A-1 | 200 | 63.5 | 37.85 | 39.68 | 19.85 | 80.3 | 87.2 | 60 | 8 | 431.6 | 16.15 |
| 40B-1 | 63.5 | 38.1 | 39.37 | 22.89 | 82.2 | 89.2 | 52.96 | 8 | 394 | 16.35 | ||
